VTL-201 Hydraulic Pump
The VTL-201 is a hydraulic lubrication pump specially designed for small and medium-sized hydraulic tools and equipment. Its core function is to reduce friction and wear during equipment operation through continuous and precise lubrication, so as to extend service life and improve working efficiency.
Adopting a unique pressure plate structure, the lubrication pump allows horizontal mounting with stronger adaptability for flexible layout in limited spaces. The built-in pressure plate ensures full utilization of lubricant inside the reservoir, reduces residual waste, and maintains stable delivery pressure.
Equipped with an 8L refillable oil reservoir, it greatly extends continuous lubrication duration and reduces manual refilling frequency, making it suitable for heavy-consumption and continuous operation conditions.
Technical Information of VTL-201 Hydraulic Pump
Operating Temperature | -25 ~ 75 ℃ |
Operating Pressure | 120 ~ 270 Bar |
Hydraulic Conveying System Operating Pressure | 80 ~ 210 Bar |
Hydraulic Oil Inlet Thread | G 1/4 |
Grease Filling Port Thread | G 1/4 |
Oil Outlet Thread | G 1/4 |
Number of Oil Outlets | 1 |
Output per Stroke | 0.22 ml |
Applicable Lubricant | NLGI 2# Grease |
Reservoir Volume | 8L |

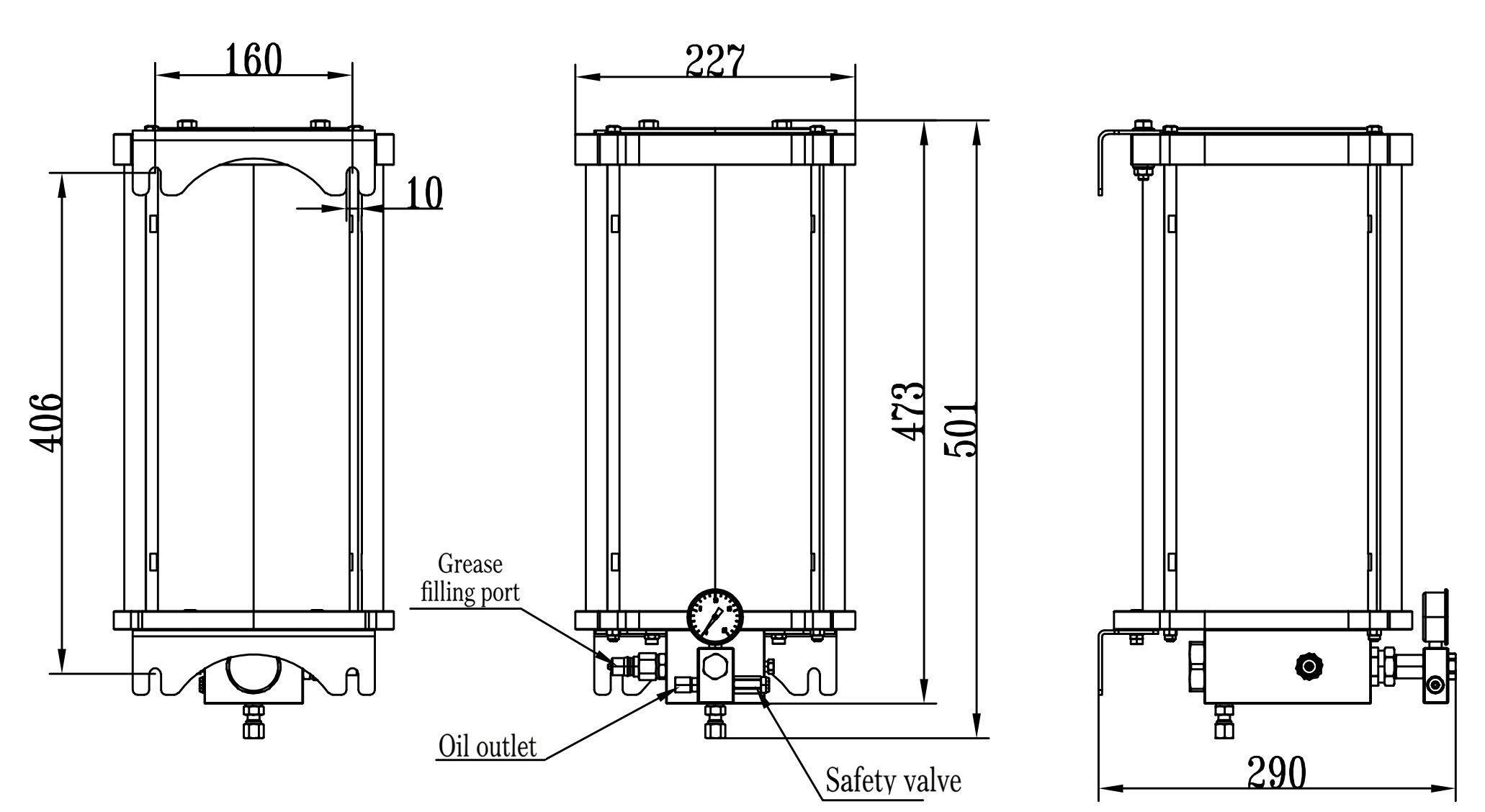

VTL-201 Hydraulic Pump Diagram(mm)
Features of VTL-201 Hydraulic Pump
Fewer moving parts for enhanced operational reliability
Flexible and versatile installation
Built-in pressure plate in the reservoir, supporting horizontal installation
Application Industries of VTL-201 Hydraulic Pump
Hydraulic hammers with a supporting weight above 0.3t
Hydraulic accessories such as disassembly jigs and clamps
Mini excavators and small-sized equipment
Cisolube offer custom lubrication pumps with a wide selection, Contact now!
