HBP Hydraulic Pump

The HBP high-pressure hydraulic pump is a hydraulically driven double-acting piston pump. Equipped with single-line parallel grease metering assemblies, this lubrication pump can operate in conjunction with a cyclic timing control system, making it an ideal solution for single-line centralized lubrication systems.

When lubrication points require grease supply, the hydraulic oil passage opens. The pump is activated by energizing or de-energizing the solenoid valve installed at the pump front end. After the lubricator completes grease filling, the pressure in the main pipeline rises to the preset value. The pressure switch then feeds back a signal to the control system, which immediately cuts off the hydraulic oil circuit, releases system pressure, and initiates the next lubrication cycle.

احصل على عرض سعر تحميل الكتالوج

Technical Information of HBP Hydraulic Pump

TECHNICAL DATA
Number of oil outlet	1
Outlet thread	1/4 NPTF female thread (bare pump), 3/4 NPTF female thread (barrel pump)
Displacement	8.8 cc/cyc
Working pressure	Max. 30 MPa; 4350 psi
Bare pump specification	16 kg, 27 kg, 41 kg, 55 kg, 180 kg
Grease barrel capacity	27 kg, 41 kg, 55 kg
Lubricant type	OIL, 000#, 00#, 0#, 1#, 2#
Boost ratio	15:1
Hydraulic oil working pressure	20 ~ 205 bar
Hydraulic oil flow rate	0.25–3.0 L/min
Hydraulic oil operating temperature	Max. 93 ℃
Lubrication pump operating temperature	-40 ~ 65 ℃

Solenoid Valve Parameters

Working Pressure	207 bar
Operating Temperature	-40 ~ 100 ℃
Mounting Torque	26 ~ 28.5 N·m
Voltage	24VDC

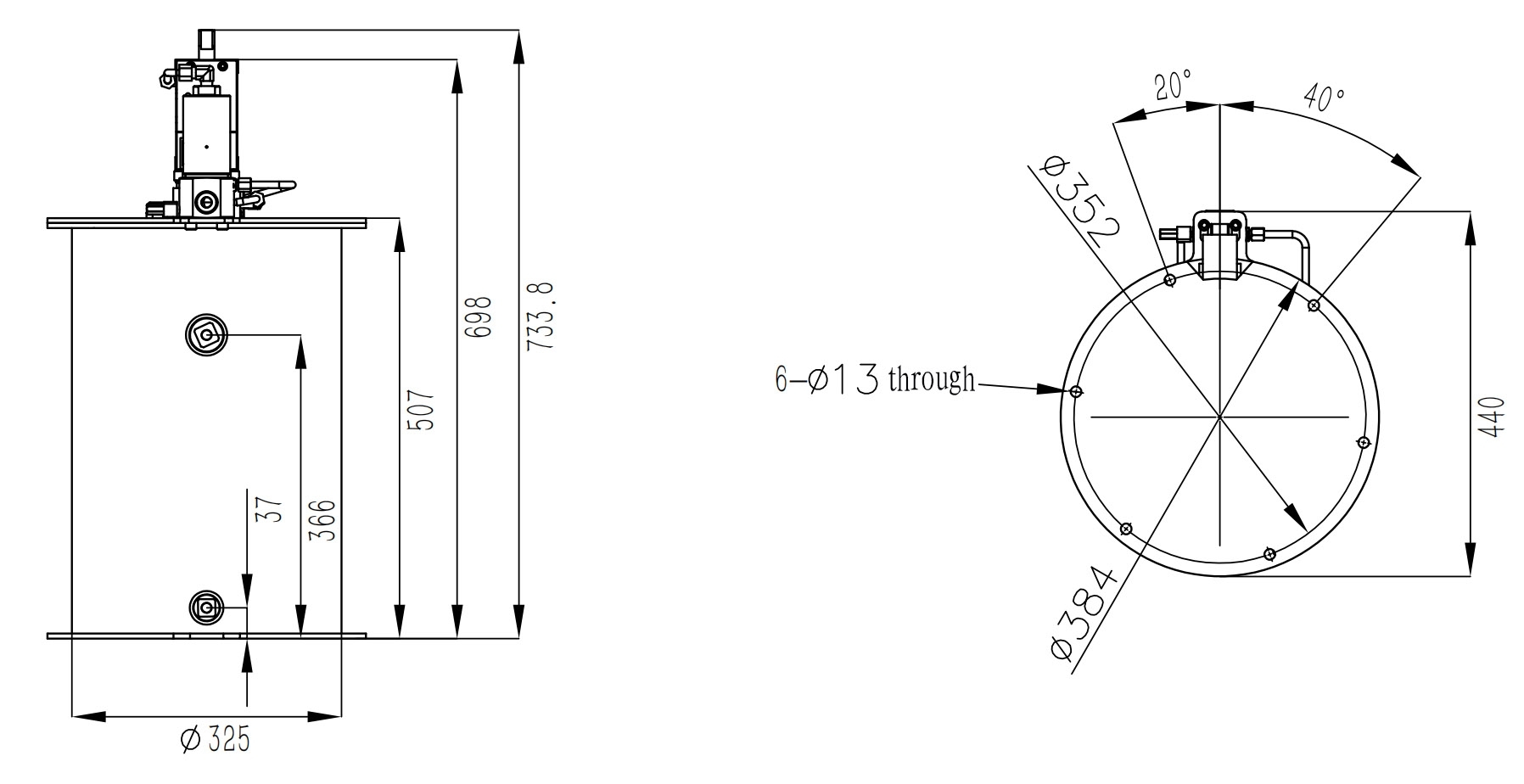

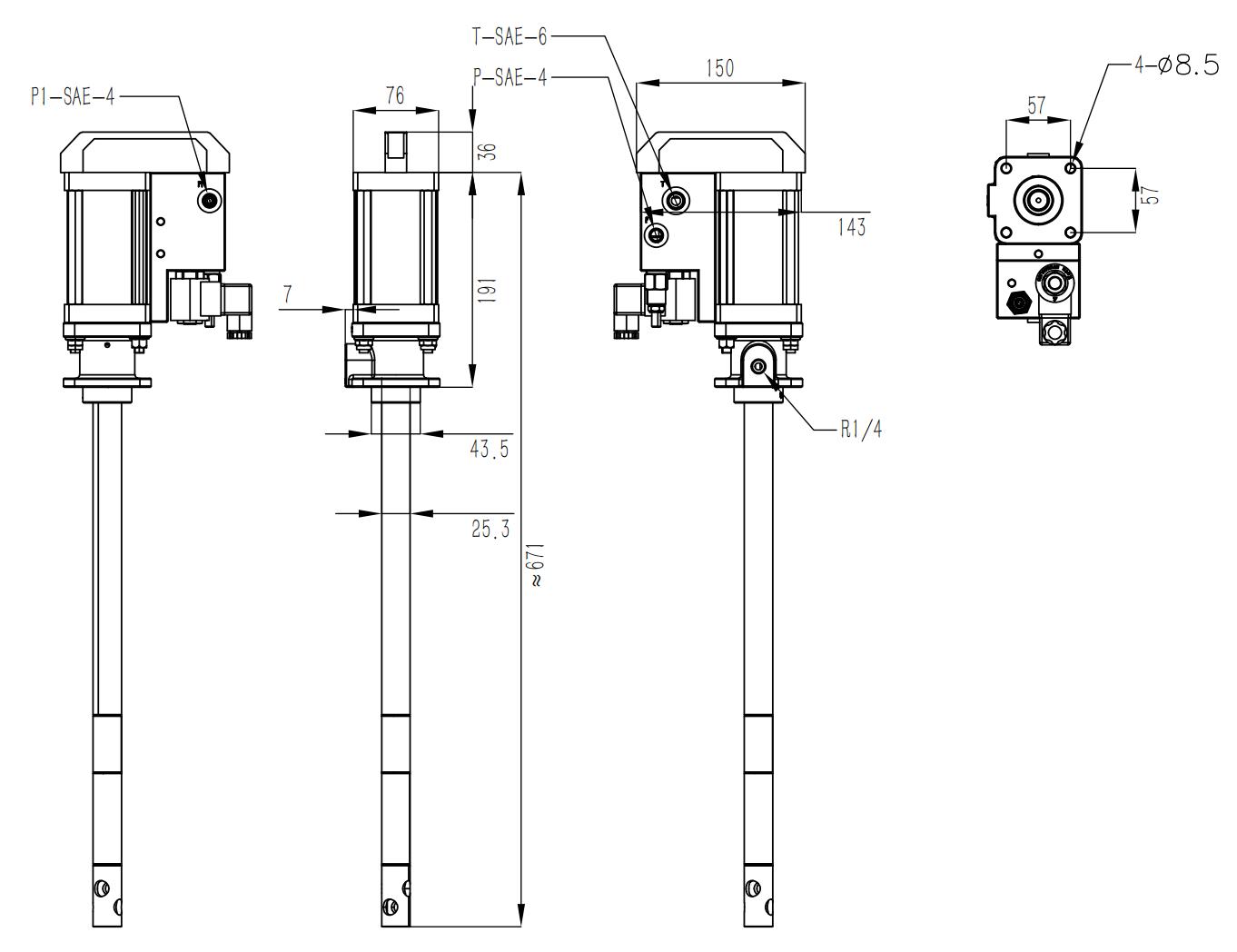

Technical Drawing of HBP Hydraulic Pump (mm): 27kg

Features of HBP Hydraulic Pump

Multiple specifications available for selection
Driven by hydraulic motor
Double-acting piston pump structure
Excellent applicability and durability, ensuring stable operation even in harsh working environments

Application Industries of HBP Hydraulic Pump

Construction machinery
Mining equipment
Industrial equipment
