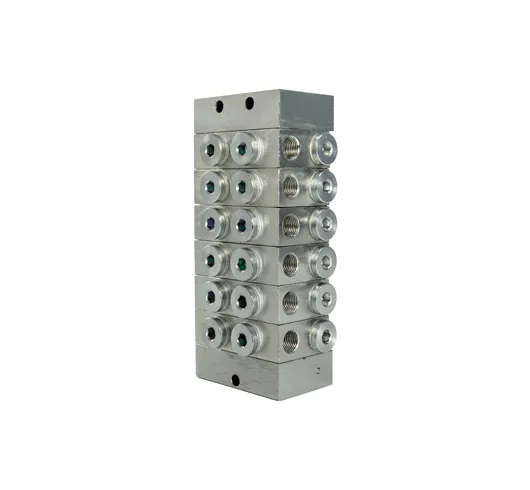

VB Distributor Valve

A typical VB distributor valve consists of a "first piece", a "tail piece" and 3 to 10 working pieces. Can provide 3 to 20 lubrication points of lubrication, VB distributor valve working piece, a variety of specifications of displacement for selection. The double outlet working piece (after the specification value of the working piece, the T represents the double outlet) has two oil outlets, which can be set as the side or upper output; the single outlet (after the specification value of the working piece, the S represents the single outlet) has one oil outlet, which can be at either end of the working piece, and the other end needs to be blocked. Note: that the double outlet working piece should not block any outlet, otherwise it will affect the normal operation.

Magnetic and electronic proximity switch cycle indicators can be easily configured to provide positive protection for successful lubrication.

احصل على عرض سعر تحميل الكتالوج

Technical Information of VB Distributor Valve

Operating pressure	Max 250 bar
Lubricants	Oil 46 cSt to Grease NLGI-2
Operating temperature	-40 °C to 110 °C
Inlet port	R1/8
Outlet port	M10x1
Outlets	MAX 20
Max inlet	Max 280cyc/min
Coating	Zinc-Nickel plated
Lubrication system	progressive lubrication system

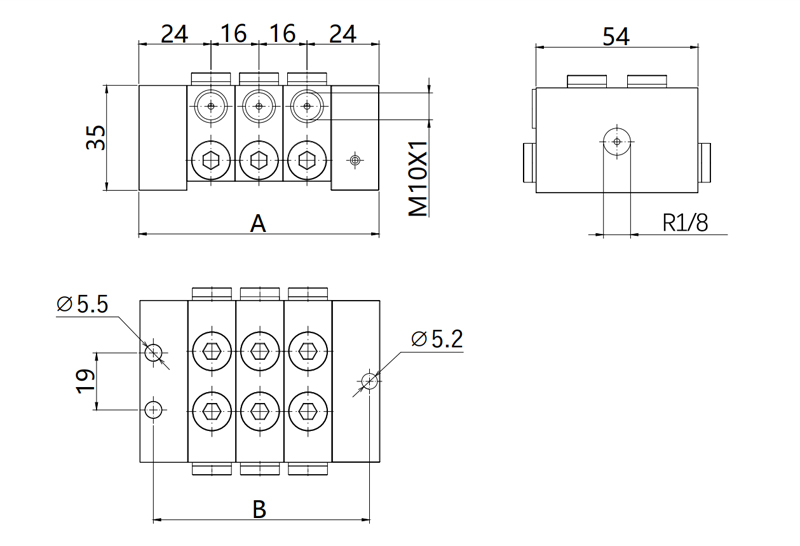

Technical Drawing of VB Distributor Valve

Technical Information of VB Distributor Valve

Number of work	A(mm）	B(mm）
3	80	72
4	96	88
5	112	104
6	128	120
7	144	136
8	160	152
9	176	168
10	192	184
