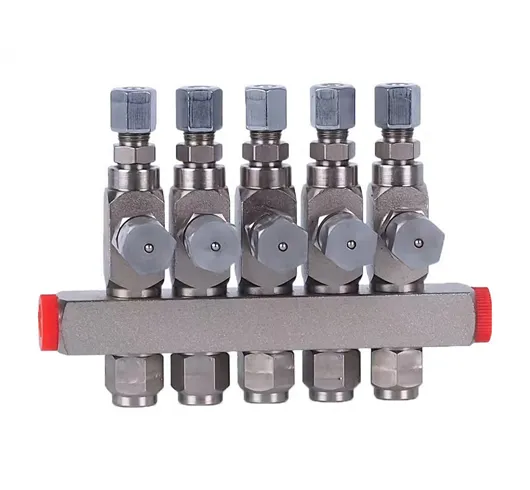

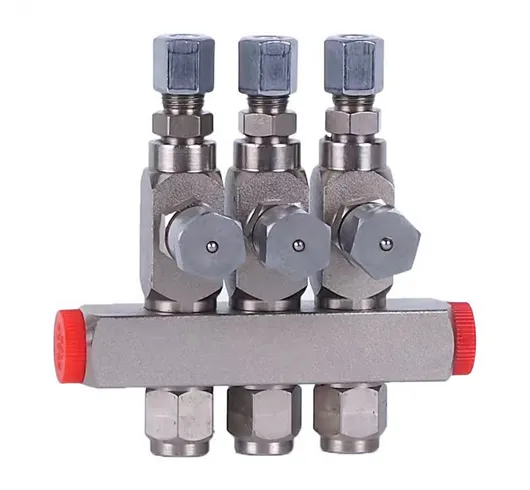

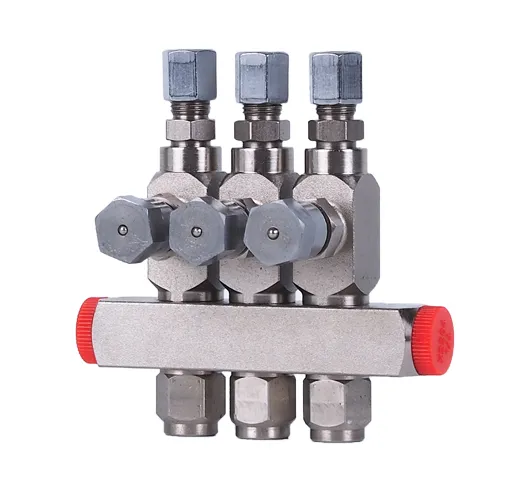

VL-32 Metering Valves
VL-32 injector has been designed to deliver lubricant to friction points through the feeding line pressure.
These injectors are supplied with visual in-built level indicators to monitor the operation.
VL-32 injector is available in different models: from one to four outlets. Every injector mounted on a manifold can be easily replaced or inspected without disassembling the unit or operating on fittings and tubings.
These units can be installed in any position and can be used with other types of injectors, if necessary.
Technical Information of VL-32 Metering Valves
TECHNICAL CHARACTERISTICS | |
Outlets | 1 to 4 |
Metering quantity | 0,016 to 0,131 ml |
Lubricant | grease NLGI 0, 1, 2 |
Operating temperature | max. +93 °C; +200 °F |
Operating pressure | 8.3 to 24 Mpa |
Material | carbon steel |
Connection main line | 1/8 NPT(F) |
| Connection outlet | 1/8 in O.D. tube |
| Lubrication system | single line lubrication system |
Characteristics of VL-32 Metering Valves
Shipped with manifolds from 1 to 4 ports to match number of lube points
Output is externally adjustable
Indicator stem permits visual check of operation
Can be removed easily for inspection or replacement
Cisolube offers custom grease distributor with wide selections, Contact now.
