GMS Single Line Lubrication Pump
With compact and lightweight appearance design, can transport thin oil and grease.
With special materials, to achieve excellent anti-shock ability.
Special design of pump make it easy to observe the oil level and prevent oil deterioration.
There are two model modes:
Standard: can be managed by an external PLC. Since it does not come with an internal control unit, this is the most economic solution for lubricating your systems.
Automatic: With integrated control system, which can be set up local running time. Equipped with local operation and alarm light, alarm with buzzer, provide low level and pulse alarm, which can be combined with the monitor of distributor units into a perfect operating system.
Technical Information of GMS Single Line Lubrication Pump
TECHNICAL CHARACTERISTICS | |
Voltages | 24 Vdc (optional 12 Vdc). |
Unit of pump outlets | 1 |
Outlet thread | G1/4 |
Output | max. 16 ml/min(one pump element) |
Operating preasure | adjustable from ±50 to 100 ba |
Reservoir Capacity | 1.5L/2L/4L |
Lubricants | OIL, 000, 00, 0, 1 |
| Operating temperatures | -50-90℃ |
| Lubrication system | single line lubrication system |

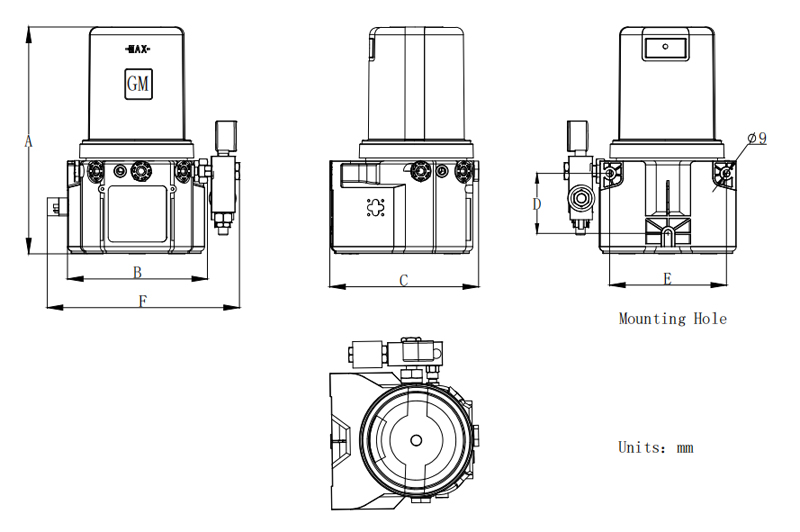

Technical Drawing of GMS Single Line Lubrication Pump
| Reservoirs | A | B | C | D | E | F |
| 1.5L | 292 | 180 | 190 | 77 | 150 | 261 |
Characteristics of GMS Single Line Lubrication Pump
oil and grease
Reservoirs: 1.5L/2L/4L
Voltages: 12VDC/24VDC
Multiple grease filling ways
Powerful centralized control system
CE Certification
Design patent
IP67
Cisolube offer custom lubrication pumps with a wide selection, Contact now!
