LUBESTAR Brushless DC Drive Motor

The LUBESTARBrushless Drive Motor is specially developed for single-line lubrication systems and is designed with a 24V DC power supply. It features high efficiency, high torque output, and low-noise operation. The motor adopts advanced brushless drive technology, offering more stable performance, reduced mechanical wear, and a significantly longer service life compared with traditional brushed motors, making it suitable for long-term continuous operation.

With strong torque output capability, the Lubestar Brushless Drive Motor maintains stable power delivery even under high-pressure conditions, providing reliable and continuous driving performance for lubrication pumps. In addition, the motor features a compact structure, low energy consumption, and fast response, effectively improving the efficiency of the lubrication system while reducing overall maintenance costs.

colspan="2">

Technical data

Model

Part Number 2002861

Controller Power Consumption

DC 24V

Rated Power

186 W

Rated Current

9.6 A

Rated Speed1500 RPM
Duty CycleS1
Application Range

Suitable for Lubestar / Cisolube electric lubrication pumps

Protection DegreeIP65

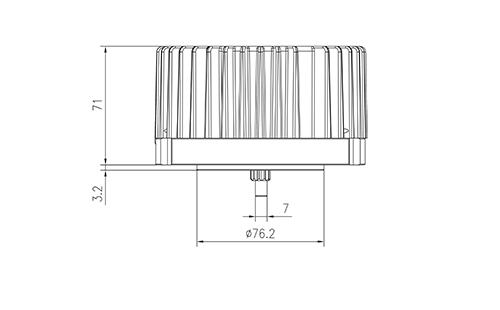

Motor Dimension Drawing(mm):

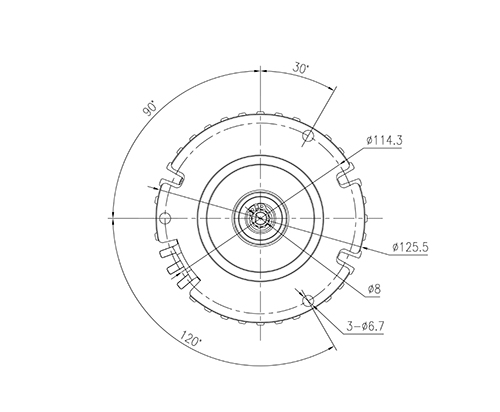

Motor Mounting Dimension Drawing (mm) :



Lubrication System
